CPT (Cone Penetration Test) in Laval: Stratigraphic Profiling & Geotechnical Parameters

In Laval, the ground doesn't always tell you what you need to know from a borehole alone. Much of the island sits on deep deposits of Champlain Sea clay, and we often see layers of sensitive silt that behave well in SPT but fail dramatically when remolded. That's where the cone penetration test becomes indispensable. CPT gives us a continuous resistance profile — tip resistance, sleeve friction, and pore pressure — so we can see exactly where the crust ends and the soft clay begins. For projects near Rivière des Prairies or across the central plateau, understanding this transition is critical. When we need to verify strength parameters without disturbing the soil fabric, CPT is our go-to. It also pairs well with a triaxial program when we want to calibrate undrained shear strength from cone data against lab results on thin-walled samples.

CPT in Laval's Champlain clay gives you a near-continuous undrained shear strength profile — something no SPT can match in sensitive soils.

Methodology and scope

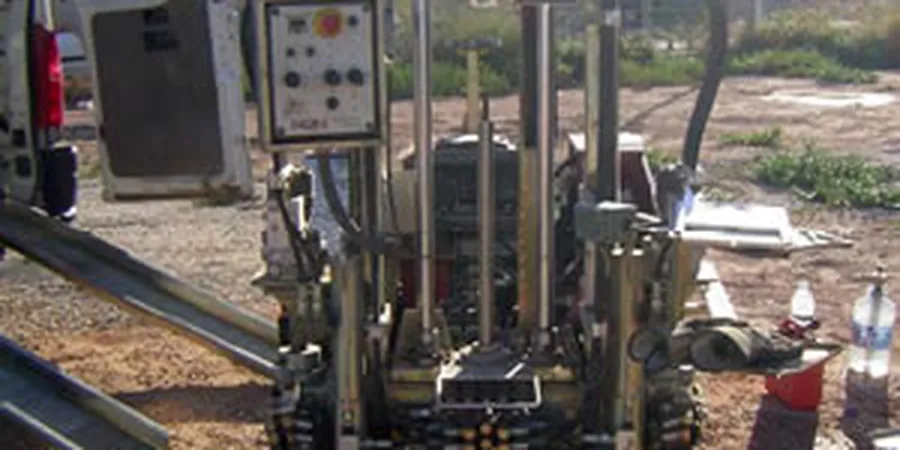

Laval's development from a rural parish into Quebec's third-largest city meant that much of the infrastructure was built before modern geotechnical standards. Today, densification projects in Chomedey and Sainte-Rose encounter variable fill over marine clay, making CPT the fastest way to map the subsurface. We use a 20-tonne penetrometer with 15 cm² cones, pushing at 2 cm/s per ASTM D5778. The real value comes from pore pressure dissipation tests: in Laval's silty clays, we can estimate the coefficient of consolidation directly, which is essential for predicting settlement time under embankments. For footings on the compact till that outcrops in eastern Laval, we often run CPT to refusal to confirm bearing depth, then cross-check with SPT in the same location. The friction ratio helps us classify soil behavior type without a single bag of cuttings. Our engineers interpret the data using Robertson (1990) charts and site-specific correlations validated against local lab results.

Local considerations

The Champlain Sea clays beneath Laval are notorious for their sensitivity. Values above 30 are common, and we've measured sensitivity over 100 in pockets near the Mille Îles River. A standard drilling operation can mask this — the sample comes up looking firm, but the structure is metastable. CPT detects this by showing a sharp drop in sleeve friction with high pore pressure generation. Without this data, a designer might assume a higher operational strength and miss the liquefaction-like behavior that can occur during excavation or seismic loading. Laval sits in NBCC seismic hazard zone with a PGA around 0.3g for the 2% in 50-year event. For liquefaction assessments, CPT-based methods (Robertson & Wride, 1998) are preferred because they avoid the density correction uncertainties of SPT. We've seen projects where the CPT profile changed the foundation concept from shallow footings to piles after revealing a 2-meter-thick layer of quick clay at depth.

Technical parameters

Parameter	Typical value
Test Standard	ASTM D5778-20
Cone Type	Piezocone (CPTu), 15 cm² base area
Push Rate	20 mm/s ± 5 mm/s
Measurements	qt, fs, u2 (shoulder filter), inclination
Maximum Depth	Up to 30 m (refusal on dense till)
Data Interval	10 mm continuous logging
Soil Classification	Robertson (1990) SBTn charts
Pore Pressure Dissipation	t50 method for ch estimation

Associated technical services

Seismic CPT (SCPTu)

Downhole shear wave velocity measurement every 1 m during CPT. Gives continuous Vs profiles for NBCC site class determination (C, D, or E) without a separate seismic test.

CPT for Settlement Analysis

Pore pressure dissipation tests at multiple depths to estimate consolidation coefficient (ch, cv). Used for embankment preloading design and wick drain spacing on compressible clay.

CPT Supervision & Interpretation

Full-day field supervision by a geotechnical engineer, plus report with SBTn classification, undrained shear strength (Nkt, NΔu), and OCR profiles calibrated to local Laval clay data.

Applicable standards

ASTM D5778-20: Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils, NBCC 2020: National Building Code of Canada (seismic provisions), CSA A23.3: Design of Concrete Structures (foundation references), ASTM D2488: Visual-Manual Soil Description (correlation reference)

Frequently asked questions

How deep can you push a CPT in Laval's soils?

In the soft Champlain clays we routinely reach 25 to 30 meters with a 20-tonne truck. The limiting factor is usually the dense till layer at the base of the marine sequence. In eastern Laval, where the till is shallower, refusal typically occurs between 10 and 15 meters. We always attempt to push into the till to confirm bearing stratum.

What does a CPT test cost in Laval?

For a standard CPT sounding to 20 meters in Laval, budget between CA$250 and CA$300 per meter. This includes mobilization within the city, the piezocone, real-time data acquisition, and an interpreted report with soil classification and strength parameters. Deeper soundings or SCPTu with shear wave measurements are priced accordingly.

Is CPT better than SPT for Laval's sensitive clays?

For profiling and strength assessment in sensitive Champlain clays, CPT has clear advantages. It provides a continuous record with no sample disturbance, so we don't miss thin silt seams or weak layers. SPT remains valuable for obtaining actual soil samples and for correlations in granular soils. We often recommend a hybrid program: a few SPT boreholes for sampling and index testing, complemented by several CPT soundings to fill in the stratigraphic detail.
