Seismic Tomography (Refraction & Reflection) for Geotechnical Projects in Laval

Laval’s growth from a patchwork of rural parishes on Île Jésus into Quebec’s third-largest city placed unique demands on its subsurface. The island’s geology, shaped by the Champlain Sea regression, left thick sequences of marine clay and till over fractured Ordovician limestone. When a new transit corridor or institutional building breaks ground in Chomedey or Sainte-Rose, guessing bedrock depth from sparse boreholes alone invites cost overruns. Our seismic tomography campaigns—both refraction and reflection—deliver continuous P-wave and S-wave velocity profiles that reveal the true rockhead topography, helping engineers size excavations and select foundation types with confidence. For deeper targets, we often pair a CPT test campaign with the tomographic model to calibrate soil stiffness where the velocity contrast between clay and till is subtle but mechanically critical.

Seismic tomography turns a few borehole data points into a continuous image of the subsurface, reducing the uncertainty that drives up contingency costs on Laval projects.

Methodology and scope

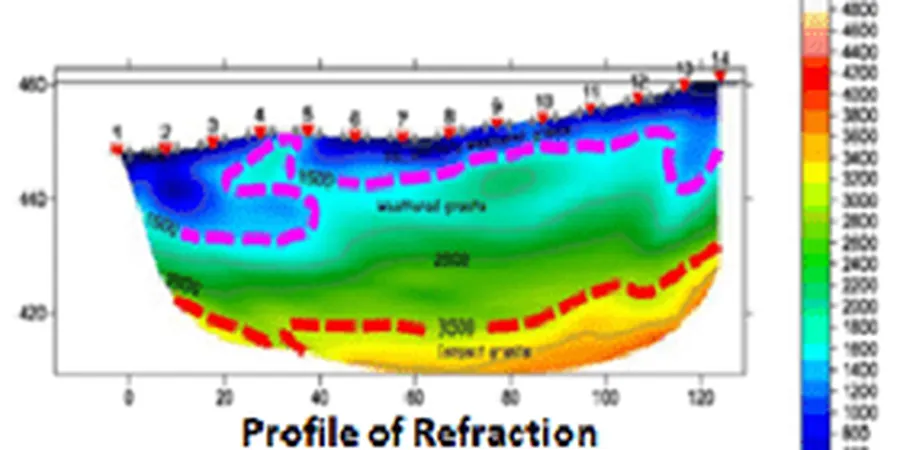

One recurring mistake we see on Île Jésus is assuming that a single borehole log captures the bedrock surface across an entire parcel. The limestone here can exhibit pinnacle-and-groove weathering, with elevation swings of 3 metres or more over a 20-metre distance. Refraction tomography with a 24- or 48-channel seismograph and a sledgehammer or weight-drop source maps these features as velocity isochrones, flagging zones where rock quality degrades below 2,500 m/s. Reflection processing, with careful CDP stacking, images sub-horizontal fractures and potential karst cavities before they become a problem during excavation. In the eastern sectors near the Rivière des Prairies, where sensitive clay layers are common, we incorporate a seismic refraction survey alongside electrical resistivity to distinguish intact clay from zones affected by post-glacial landslides, a detail that directly influences slope setback requirements under the Quebec Construction Code.

Local considerations

At 45.5571° N, Laval sits within the Western Quebec Seismic Zone, where magnitude 5+ events occur roughly once per decade. The 1732 Montreal earthquake, estimated at M5.8, caused significant damage on Île Jésus, and modern NBCC 2020 maps assign the region a site class C to E depending on soil thickness. Seismic tomography provides the Vs30 profile needed to assign the correct site class and avoid over-conservative or unconservative spectral accelerations. Beyond earthquake design, Laval’s average elevation of 40 masl means that buried valleys filled with compressible Champlain Sea clay are common, and missing a deep trough under a proposed high-rise in the Centre-Ville district could trigger differential settlement and costly underpinning. Tomographic sections across these valleys let the structural team place deep foundations only where the bedrock drops, rather than over the entire footprint.

Technical parameters

Parameter	Typical value
Method standard	ASTM D5777-18 for refraction, ASTM D7128-18 for reflection
Seismograph channels	24 or 48 (Geode, Stratavisor or equivalent)
Geophone frequency	4.5 Hz to 14 Hz, vertical-component and horizontal
Energy source	10 kg sledgehammer, 50 kg weight-drop, or Betsy gun
Typical penetration depth	25 m to 80 m depending on spread length and source energy
P-wave velocity resolution	±100 m/s after tomographic inversion (ray-tracing)
Output deliverables	Velocity tomograms, depth-to-bedrock maps, rippability assessment, Vs30 profiles

Associated technical services

Refraction Microtremor (ReMi) and MASW Tomography

Combined active and passive surface-wave methods that yield 1D and 2D shear-wave velocity profiles for NBCC site classification and liquefaction screening, using linear arrays of 24 to 48 vertical geophones.

Crosshole and Downhole Seismic Tomography

High-resolution P- and S-wave velocity measurements between cased boreholes, achieving layer resolution down to 0.5 m. Ideal for modulus derivation in layered till and rock for deep excavation shoring design.

Reflection Profiling for Bedrock Integrity

Common-depth-point stacking over spreads up to 120 m to image sub-horizontal fracture zones, karst voids, and weathered rock zones that refraction alone may miss, particularly in the limestone formations beneath central Laval.

Frequently asked questions

How much does a seismic tomography survey in Laval typically cost?

Depending on the array length, source type, and whether both refraction and reflection are required, a typical survey on Île Jésus falls between CA$3,230 and CA$6,570. Projects needing crosshole logging or very deep penetration may exceed this range, and we provide a fixed-price proposal after reviewing the site geometry.

What is the difference between refraction and reflection tomography?

Refraction tomography uses the first-arrival times of seismic waves that travel along the interface between soil and rock, building a velocity model of the subsurface that works best when velocity increases with depth. Reflection tomography stacks later-arriving energy to image interfaces where velocity may decrease, such as fracture zones or cavities, giving a more detailed structural picture of the rock mass.

Can seismic tomography replace boreholes for site investigation in Laval?

It complements boreholes rather than replacing them. Tomography provides continuous lateral coverage between discrete drill points, reducing the number of boreholes needed, but a few calibration boreholes remain essential to tie velocity values to specific lithologies and to sample the clay for laboratory testing.

How long does a seismic tomography campaign take on a typical Laval site?

A single refraction line of 115 metres with 24 geophones can be acquired in about two hours, and processed data delivered within three to five business days. Larger grids or reflection spreads require proportionally more field time, but most commercial lots in Laval are covered in one or two field days.

Is seismic tomography feasible in winter conditions on Île Jésus?

Yes, winter surveys are common in Laval. Frozen ground actually improves geophone coupling and reduces surface-wave noise, though the frozen surface layer must be accounted for in the velocity model. We use heated battery packs and low-temperature cabling rated to -30°C for reliable winter acquisition.
